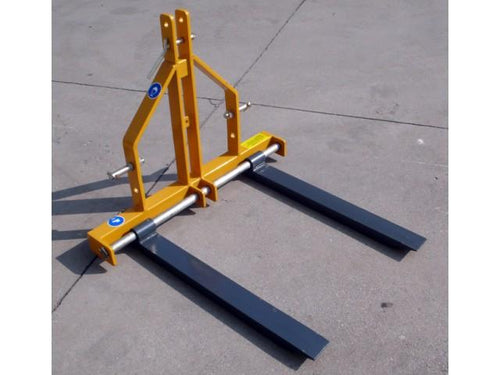

Novaquip NPF300 3 point linkage adjustable Pallet forks
OVERVIEW
These are 3 point linkage mounted Pallet forks, suitable for small to medium sized compact tractors ,with Category 1 linkage. Ideal for moving pallets around with a small tractor as they only weight 54 Kg so doesnt eat into the lifting capacity too much.
FEATURES AND BENEFITS
-Adjustable fork tines with predefined spacings
-The forks tines can be lifted up and secured to the frame for transport, manouvring and storage.
- Durable powder coated finish with zinc plated accessories.

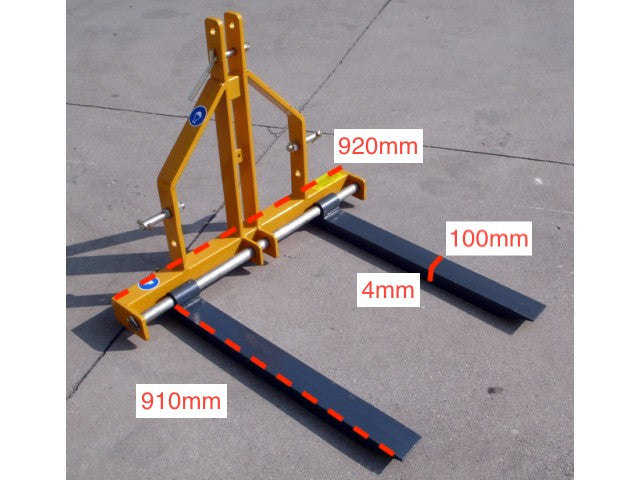

| Specification | Units |
| Overall width | 910.0 mm |
| Weight | 54.0 kg |
| Overall height | 740.0 mm (open) |
| Tractor Power Range | 15 - 45 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Load capacity | 300.0 kg |
| 3 point linkage Thickness | 12.0 mm |
| Spacing between the 2 lower points | 360.0 / 610.0 mm |
| Usable Fork Tine Length | 750.0 mm |
| Fork Tine Length | 900.0 mm |
| Fork Tine Height | 45.0 mm |
| Fork Tine Width (single tine) | 80.0 mm |
| Fork Tine Thickness | 7.0 mm U shape section |
| Fork Tine Weight | 7.6 kg |
| Fork Tine Spacing (min-max) | 100.0 / 655.0 mm |
| Positions of the forks | 4 |
| Diameter of the fork mounting bar | 32.0 mm |
| Distance between the 2 lower points and ground | 160.0 / 260.0 mm |
| Overall Length (open and closed) | 900.0 / 210.0 mm |
THIS PRODUCT HAS FREE SHIPPING TO MAINFREIGHT DEPOTS NATIONWIDE
