Overview

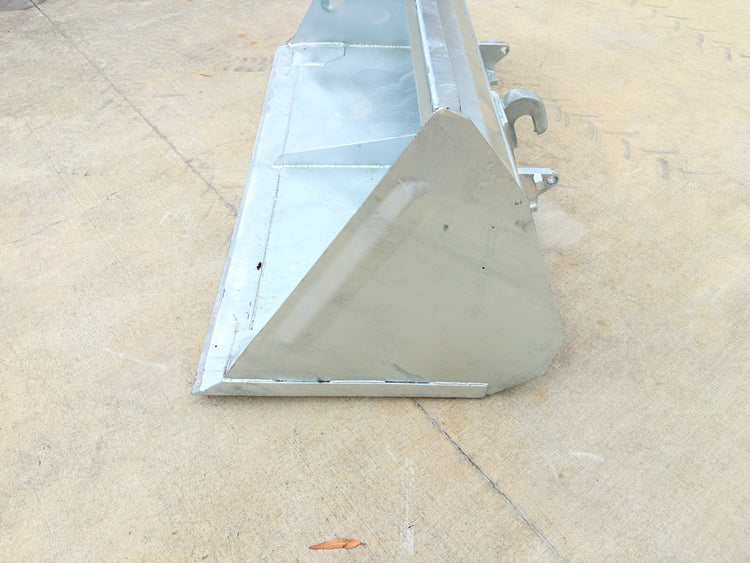

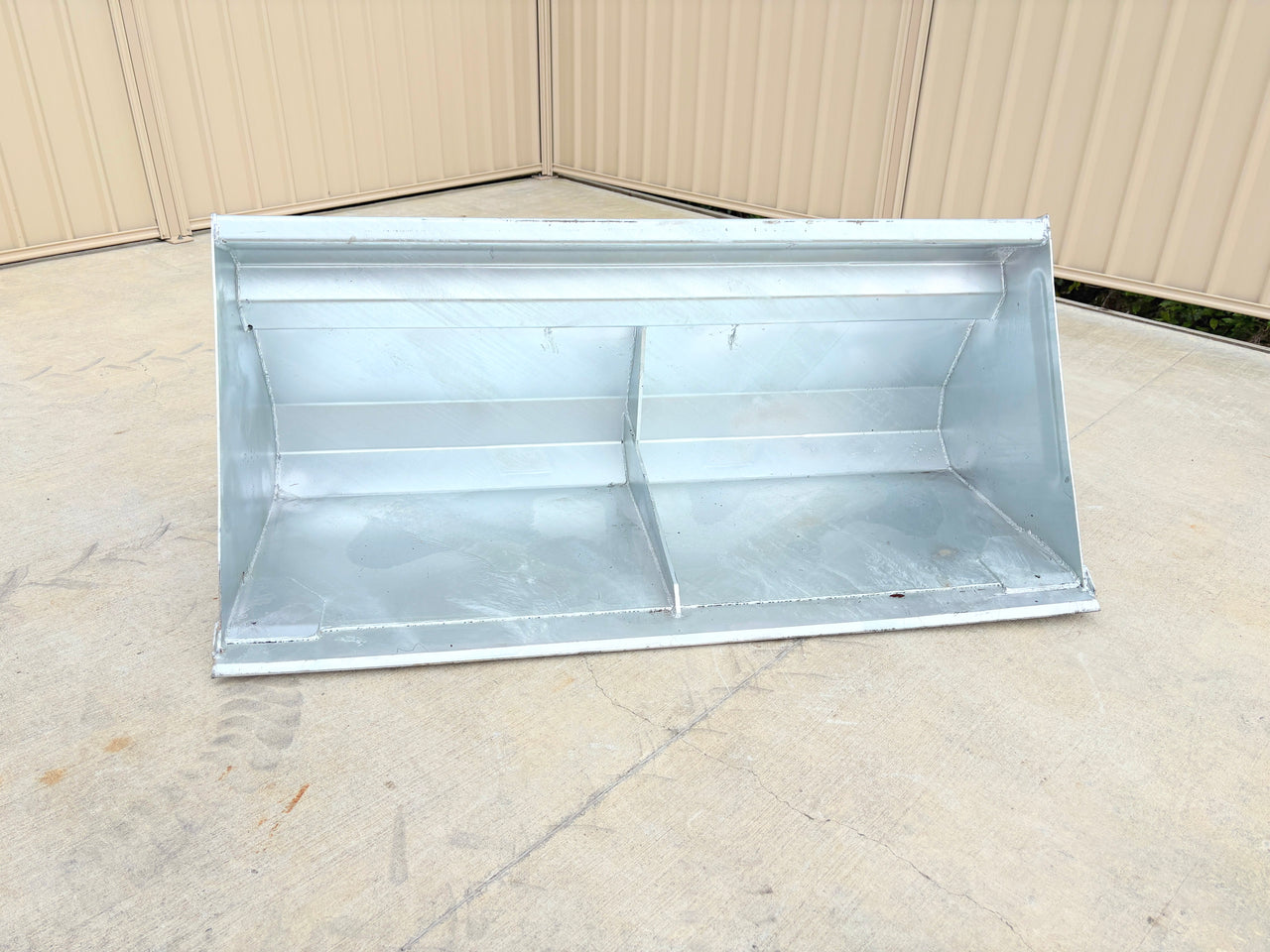

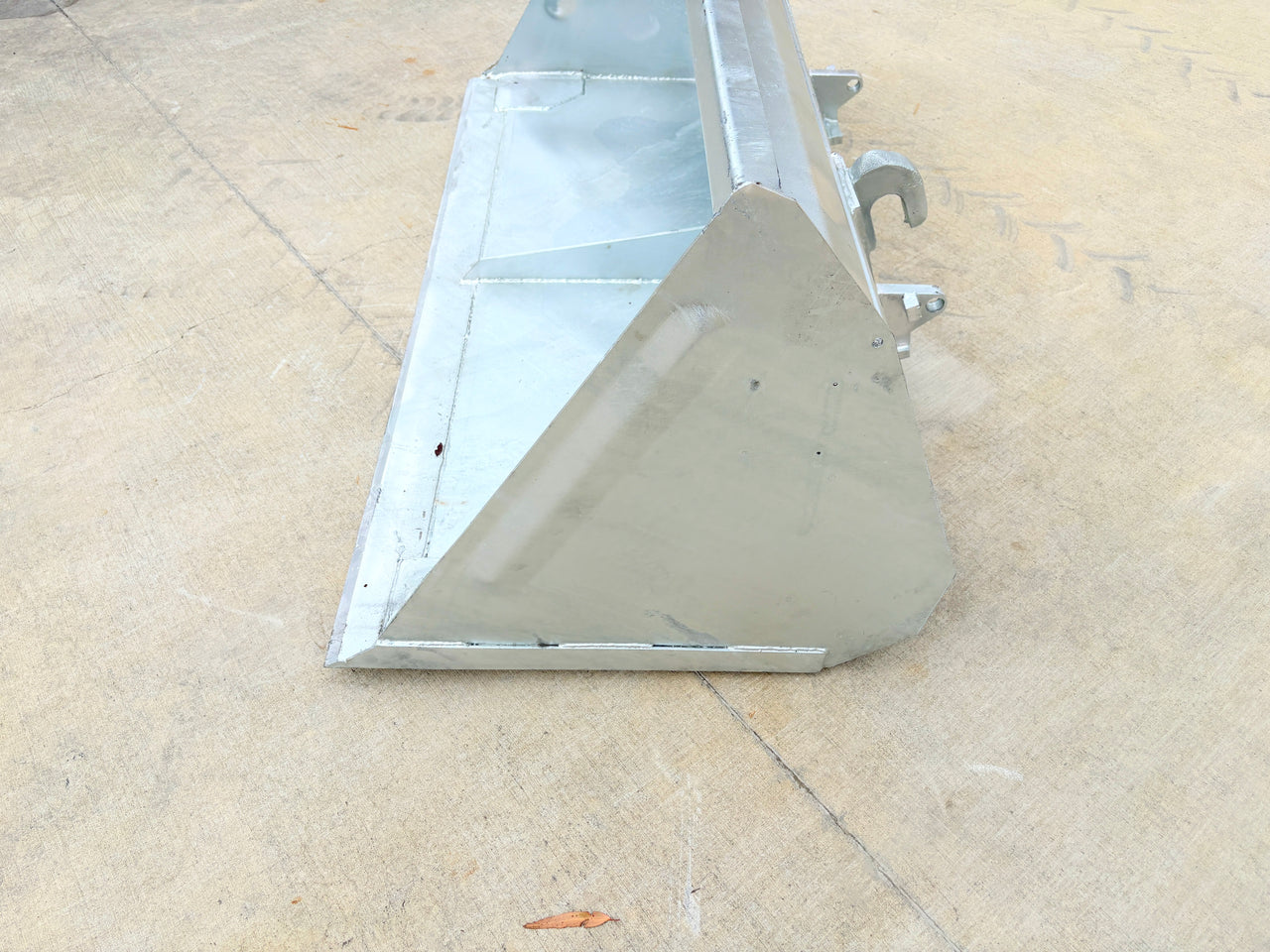

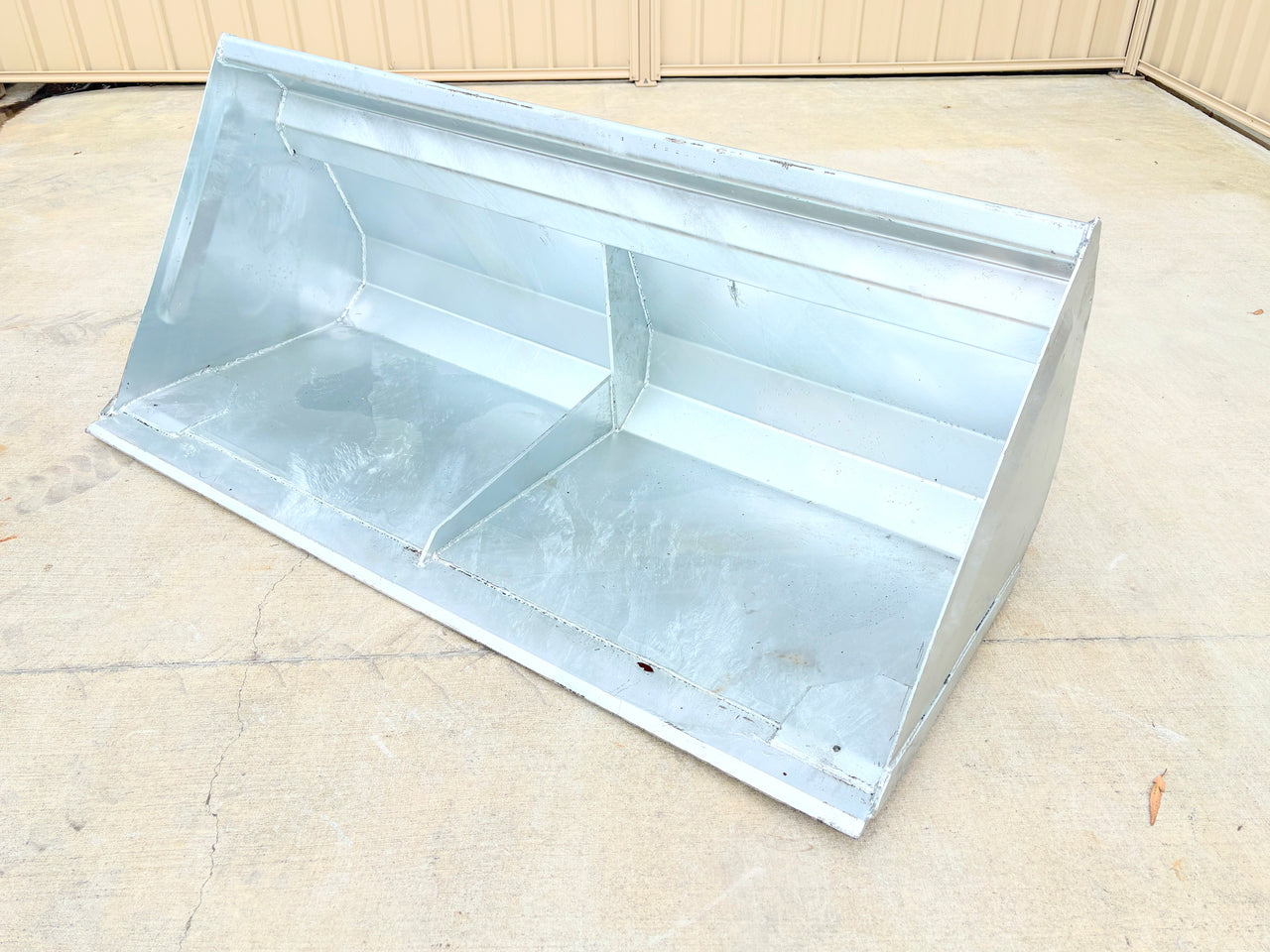

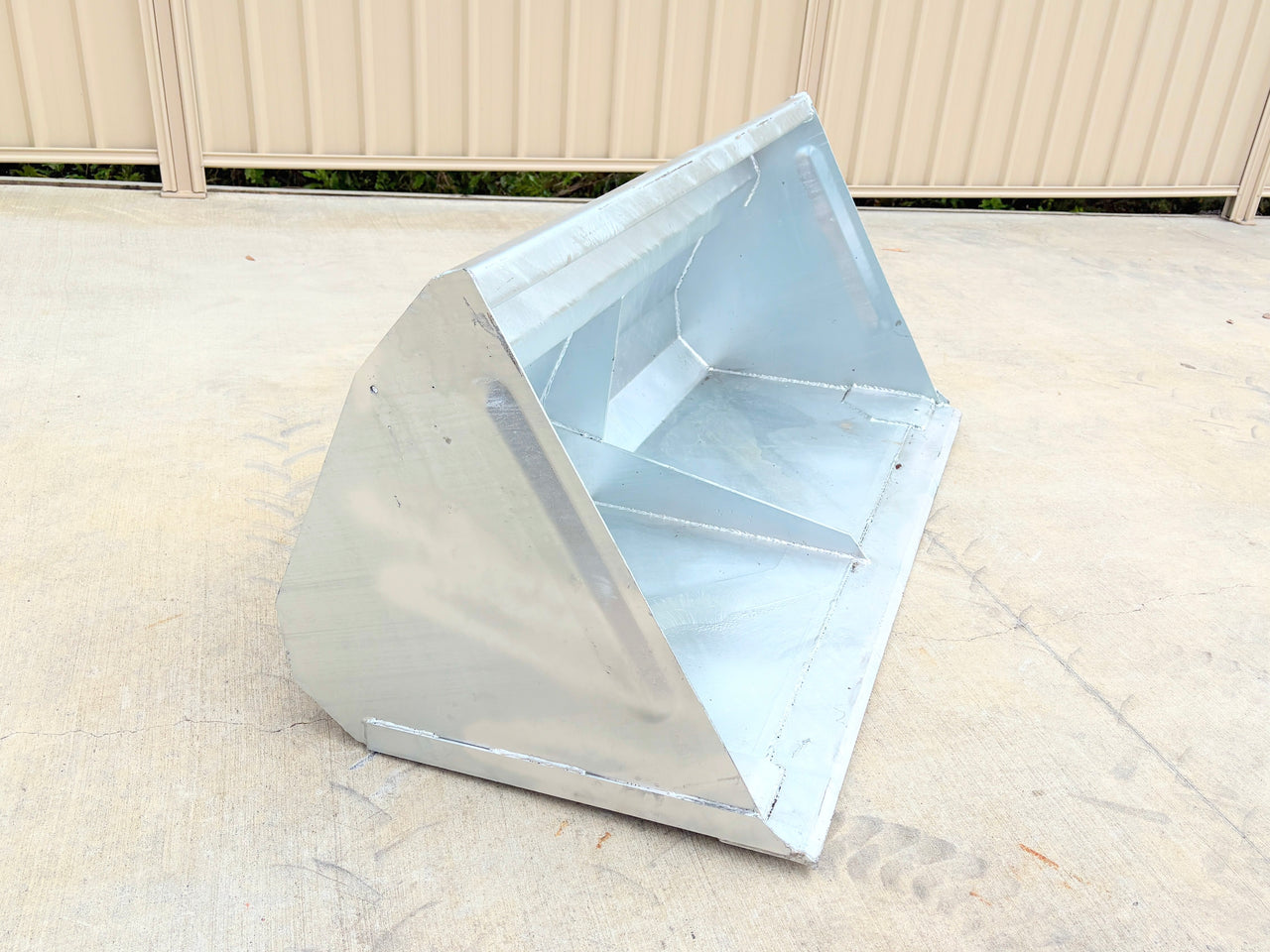

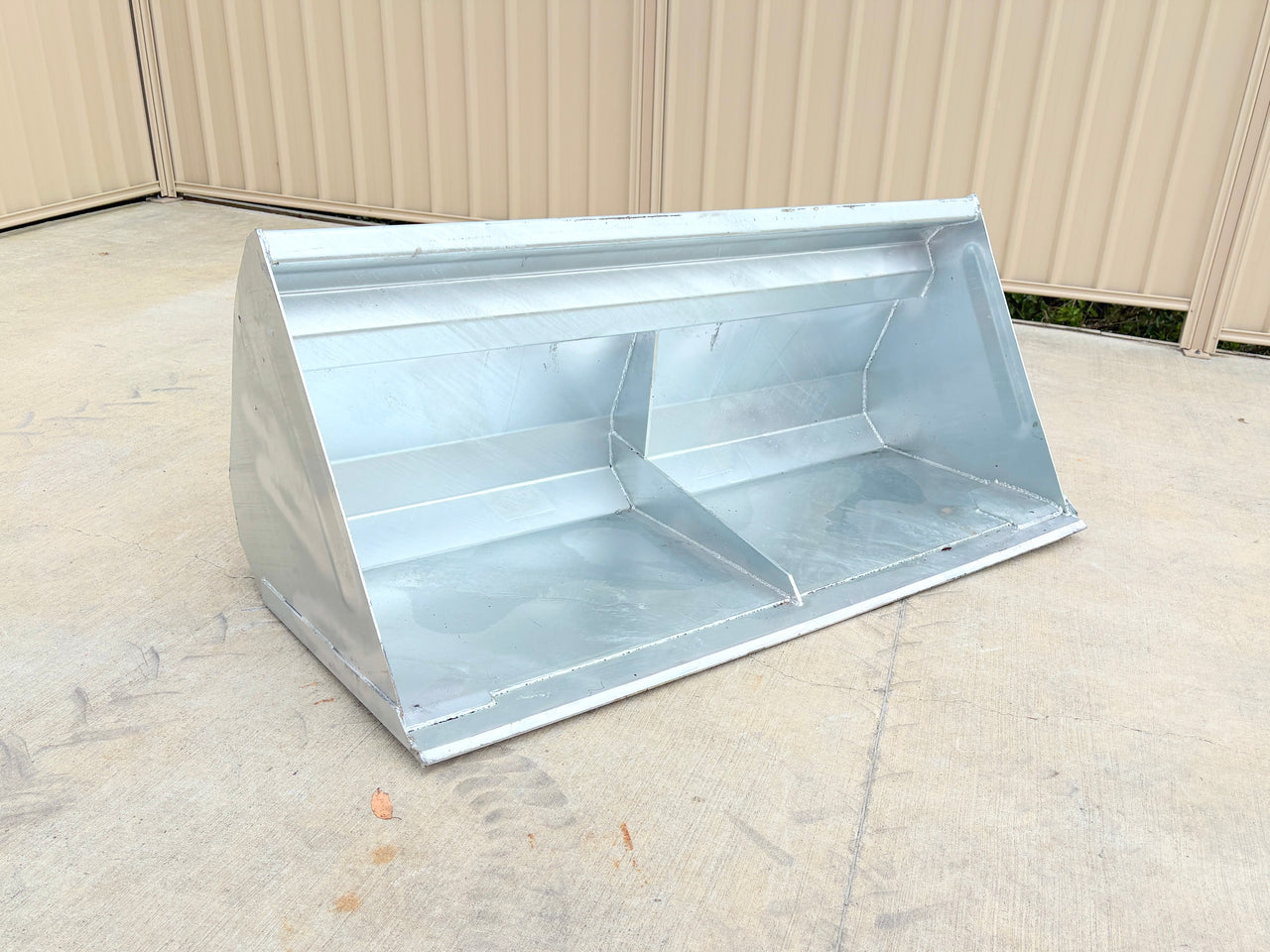

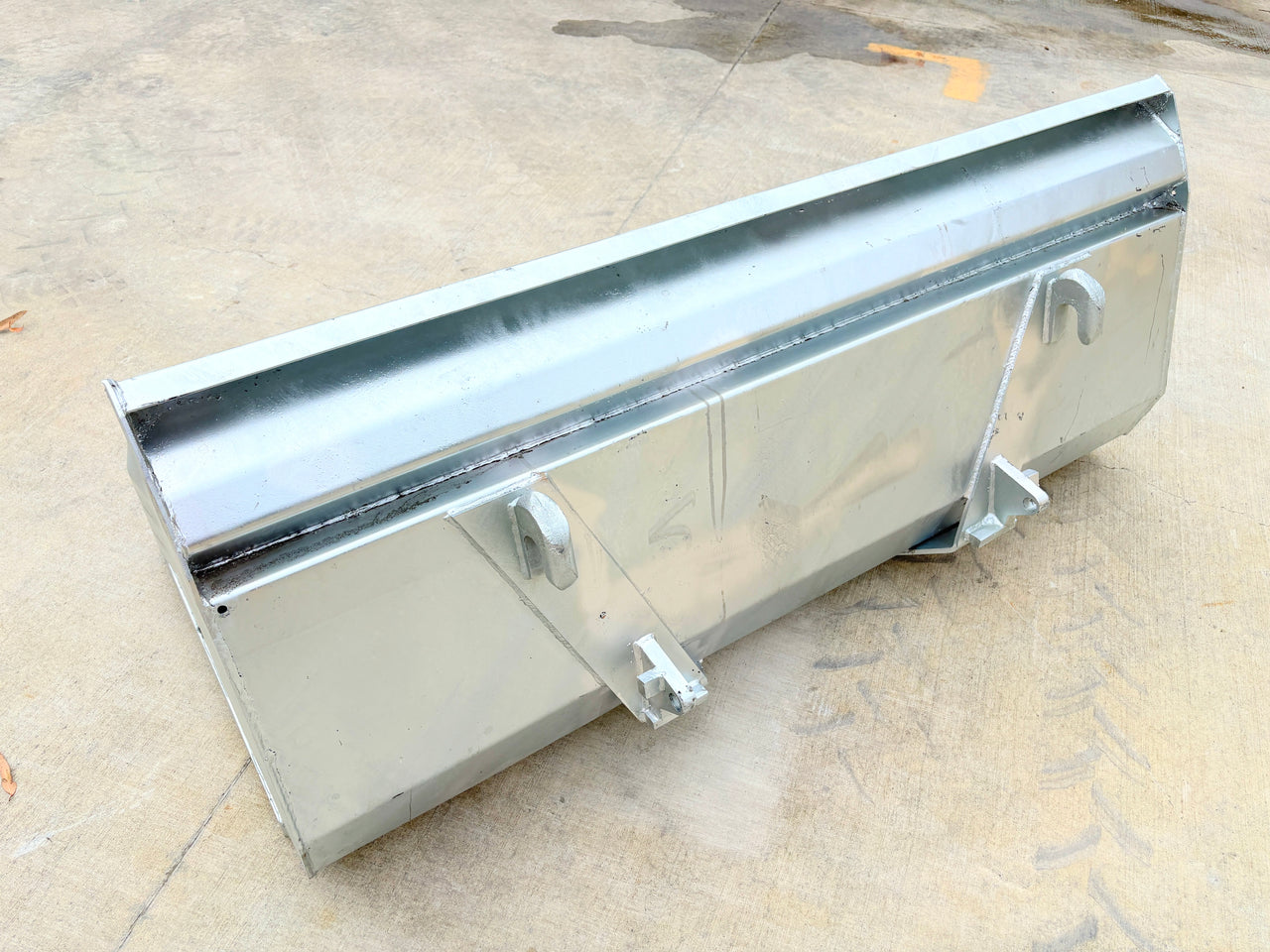

Novaquip 1.8m Loader bucket for tractors with euro hitch front end loader.

Features & Benefits

• 0.55m³ capacity

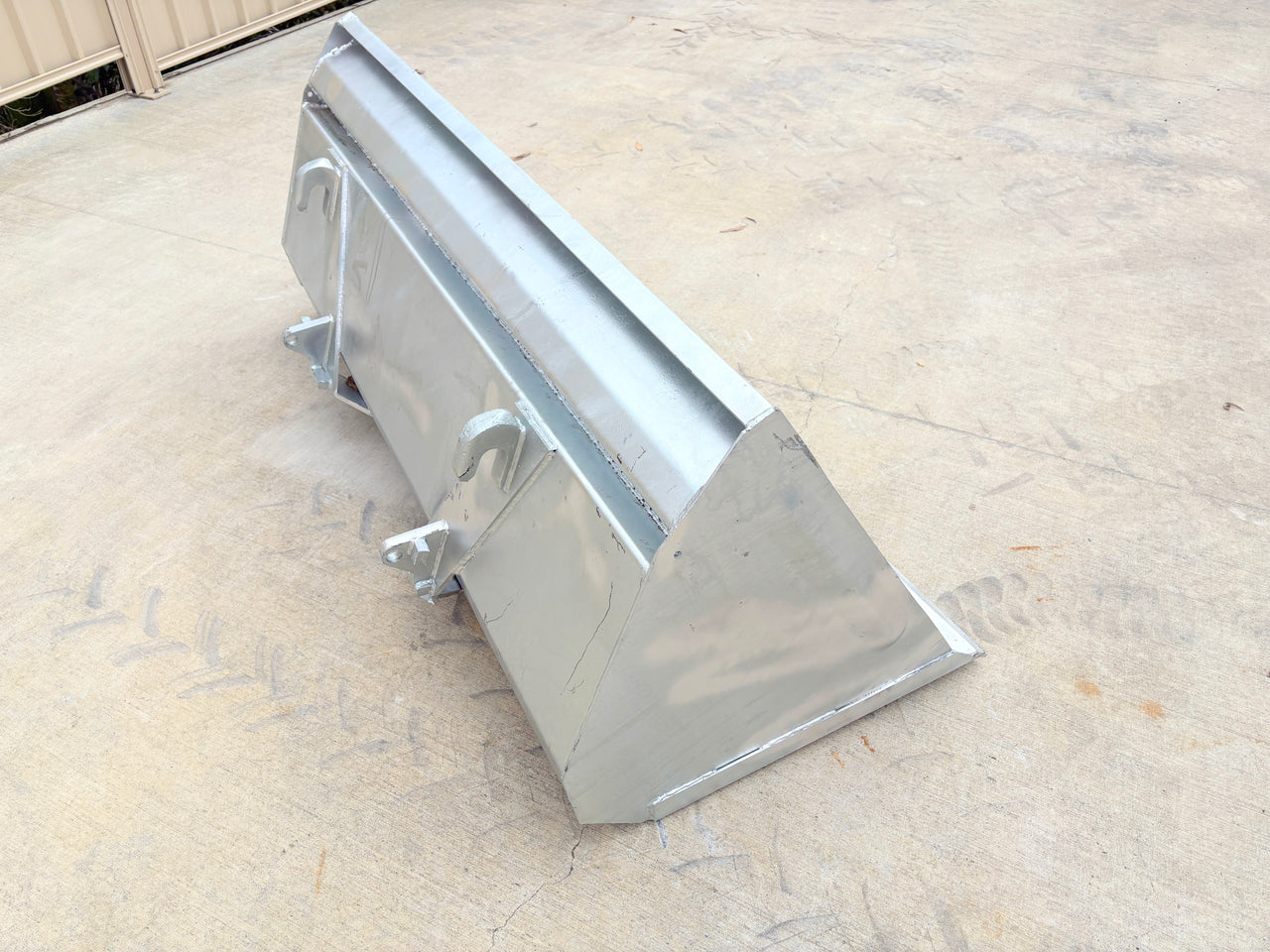

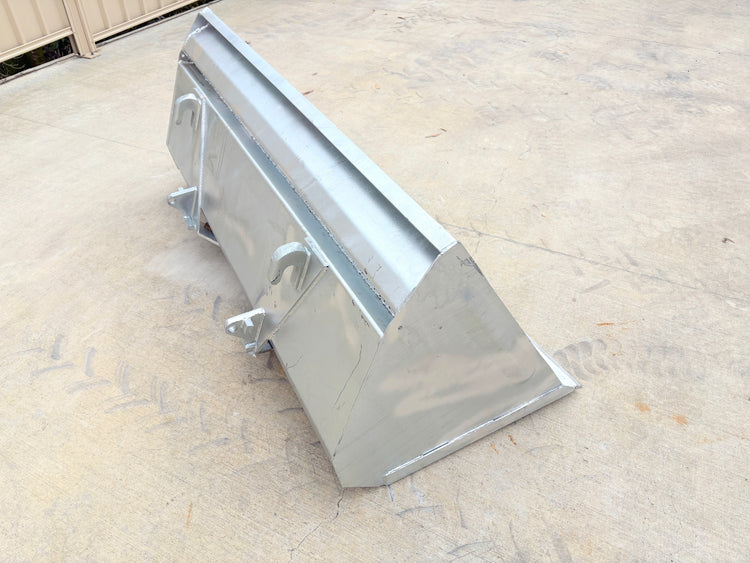

• Euro hitch brackets fitted
• 100mm x 10mm wear strips on underside
• Hot dip galvanised finish ensures resistance to corrosion

Specifications

Width	1810mm
Height	730mm
Depth	815mm
Weight	196 KG
Capacity	0.55m3
Side thickness	5mm
Body Thickness	4.5mm
Reinforcement Size	100mm x 10mm flatbar wear strips
Cutting edge	16mm x 140mm
Hitch	Euro hitch Norm
Finish	Galvanised



Notes:

Due to the hot dip galvanising process there maybe some surface imperfections or distortion from heat involved.
