FK Bale Grab Soft Hands Heavy Duty Model
Overview

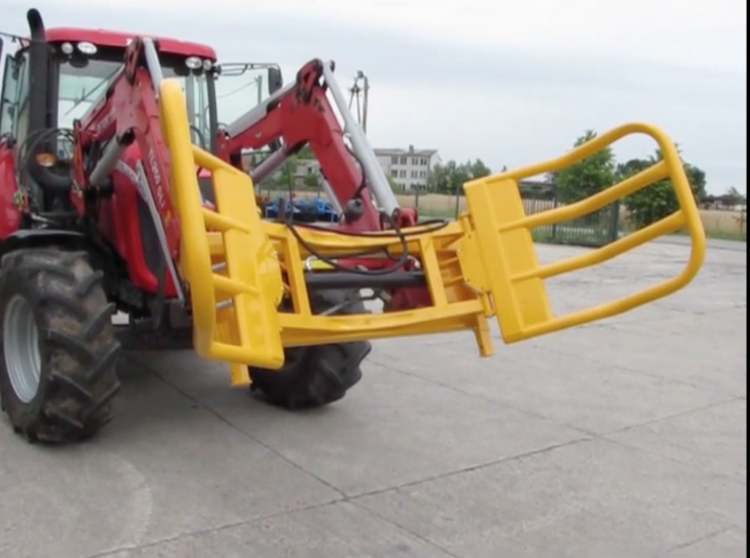

This is a European-made bale grab from one of the finest Producers of front-end loader attachments in Europe. The tubes are all robotically welded, Everything is finished and aligned perfectly for the demanding professional user

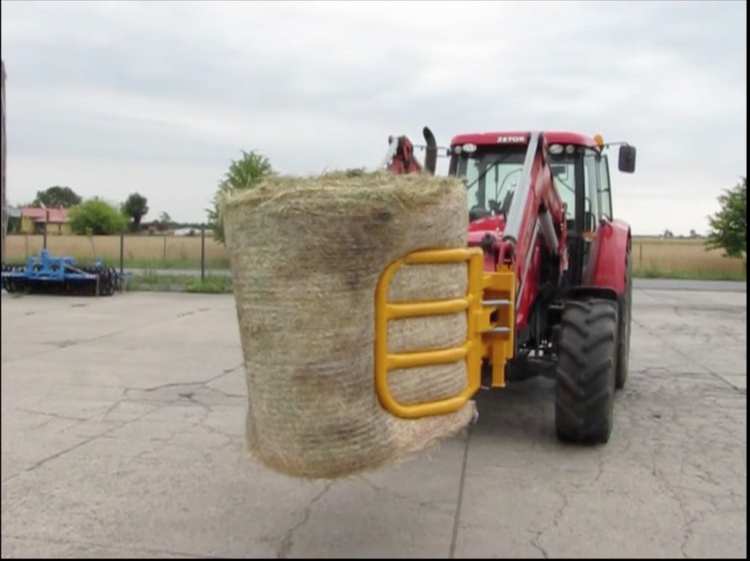

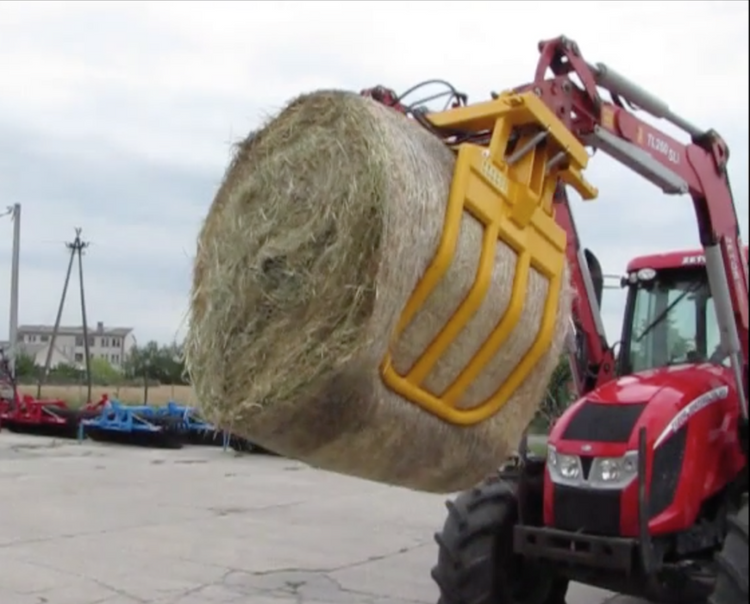

It's a popular design for the easiest loading and stacking of any kind of bales (silage, hay and straw). The curved design ensures a gentle and secure grip on the round bale. The film can not be overstretched or get damaged because the pressure is distributed evenly. Out of all the bale grabs we sell this is the most compact design with a curved RHS back board which keeps the bale and the centre of gravity closest to the front loader.
Each arm is spring centralised so they open and close in unison but also will allow one to stop and transfer travel to the other arm if they come against another object making it a high-performance safe and easy to use.
Features & Benefits
- Euro hitch Brackets factory fitted
- Powder coated in Yellow
- Suit Bale diameter 0,9-1,8M
- Hoses with Quick Release couplings included one male and one female.
- 2 x 25mm Greasable Hinge pins per arm
- Hose holders to keep the hoses out of the dirt when not connected to the tractor.
Specifications
| Specifications | Units |
| Depth | 1165mm |
| Length | 1360mm |
| Height | 740mm(from top to bottom of arm) |
| Opening width | 2150mm |
| Weight | 195kg |
| Lifting capacity | 1200kg |
| Bale size | 900 mm-1800mm |
| Pipe Arm Size | 60mm x 3mm |
Made in Poland
Shipping size L x W x H / 1365 x 800 x 1400 mm
