Mateng CP130 Wood Chipper

Mateng

$3,395.00 NZD inc GST

$2,952.20 NZD exc GST

Overview

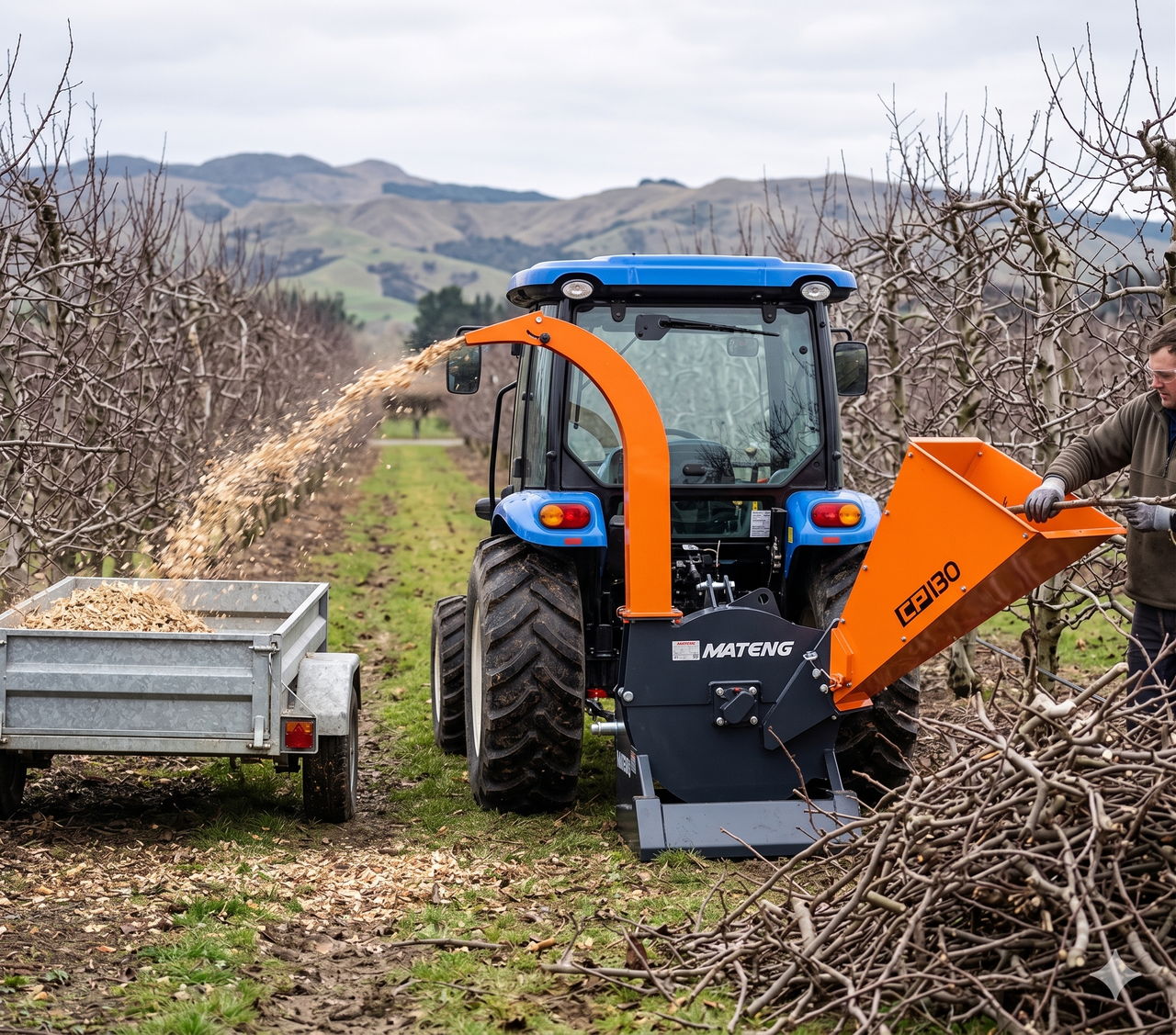

The Mateng CP130 is a PTO-driven wood chipper for tractors from 18–45 HP. It handles branches up to 130mm (5") in diameter and delivers an hourly output of 6–10 m³. Built around a 550mm flywheel with a high-speed steel gearbox, it suits lifestyle block clearing, orchard maintenance, and general wood waste management. Compatible with CAT I, CAT II, and CAT IN tractor mounts.

Features & Benefits

  • High-speed steel gearbox with 2:1 ratio delivers powerful cutting force, shredding all wood types and ejecting chips farther
  • 550mm (22") flywheel with 2 knives and 20mm (3/4") thickness for consistent, heavy-duty chipping
  • Handles branches up to 130mm (5") diameter — suitable for most lifestyle block and orchard  pruning tasks
  • Bidirectional discharge chute with 0°/180°  — switch discharge direction without moving equipment
  • Discharge hood height of 1420mm (56") for directing chips into trailers or away from the operator
  • Tool-free maintenance — feed hopper, discharge hopper, and cutterhead guard all feature quick-open hinges for fast blade changes and cleaning
  • Gravity-feeding style for straightforward, consistent material intake
  • Wide compatibility — conforms to industry-standard mounting interfaces for CAT I, CAT II, and CAT IN tractors
  • Compact and portable design optimised for easy transport and storage
  • Adjustable PTO height: 460–560mm (18–22") to suit a range of tractor configurations

Specifications

Model CP130
Power Requirement 18–45 HP
Connection CAT I, CAT II & CAT IN
Max Branch Diameter 130mm (5")
Hourly Output 6–10 m³ (210–350 ft³)
Flywheel Diameter 550mm (22")
No. of Knives 2
Flywheel Thickness 20mm (3/4")
PTO Height 460–560mm (18–22")
Discharge Hood Height 1420mm (56")
Discharge Chute Rotation 0°/180°
Chipper Housing Opening 130×205mm (5" × 8")
Chipper Hopper Opening 433×576mm (17" × 23")
Feeding Style Gravity-feeding
Gearbox 37 kW (50 HP)
Gear Ratio 2:1
Gearbox Oil Capacity 0.8 L (0.2 gal)
Weight 175 kg (386 lbs)
Product Size (L×W×H) 1320×1100×1420mm (52" × 43.3" × 55.9")

Best For

  • Lifestyle block and farm land clearing
  • Orchard and shelter belt maintenance
  • Converting prunings and slash into usable wood chip mulch
  • General branch and brush disposal

Compatibility

  • Tractor HP: 15–45 HP
  • Hitch Type: CAT I, CAT II, CAT IN
  • PTO Height: 460–560mm (18–22")

What's Included

  • CP130 wood chipper unit
  • PTO driveshaft
  • 2 x flywheel knives (fitted)

Warranty & Support

Backed by the Mateng 24 month warranty and NZ-based after-sales support. Contact us for parts and technical assistance.

Shipping & Freight

This item is 175 kg. Freight is calculated at checkout and shipped via Mainfreight. Product dimensions: 1320×1100×1420mm. Contact us if you have questions about delivery to your location.

Please Note

This unit is shipped flat packed to reduce freight costs. Requires basic nut and bolt assembly on arrival. All hardware is included and assembly is straightforward with standard tools.
