Sierra Front Weight Bracket for Suitcase Weights

Sierra

$350.00 NZD inc GST

$304.37 NZD exc GST

Overview

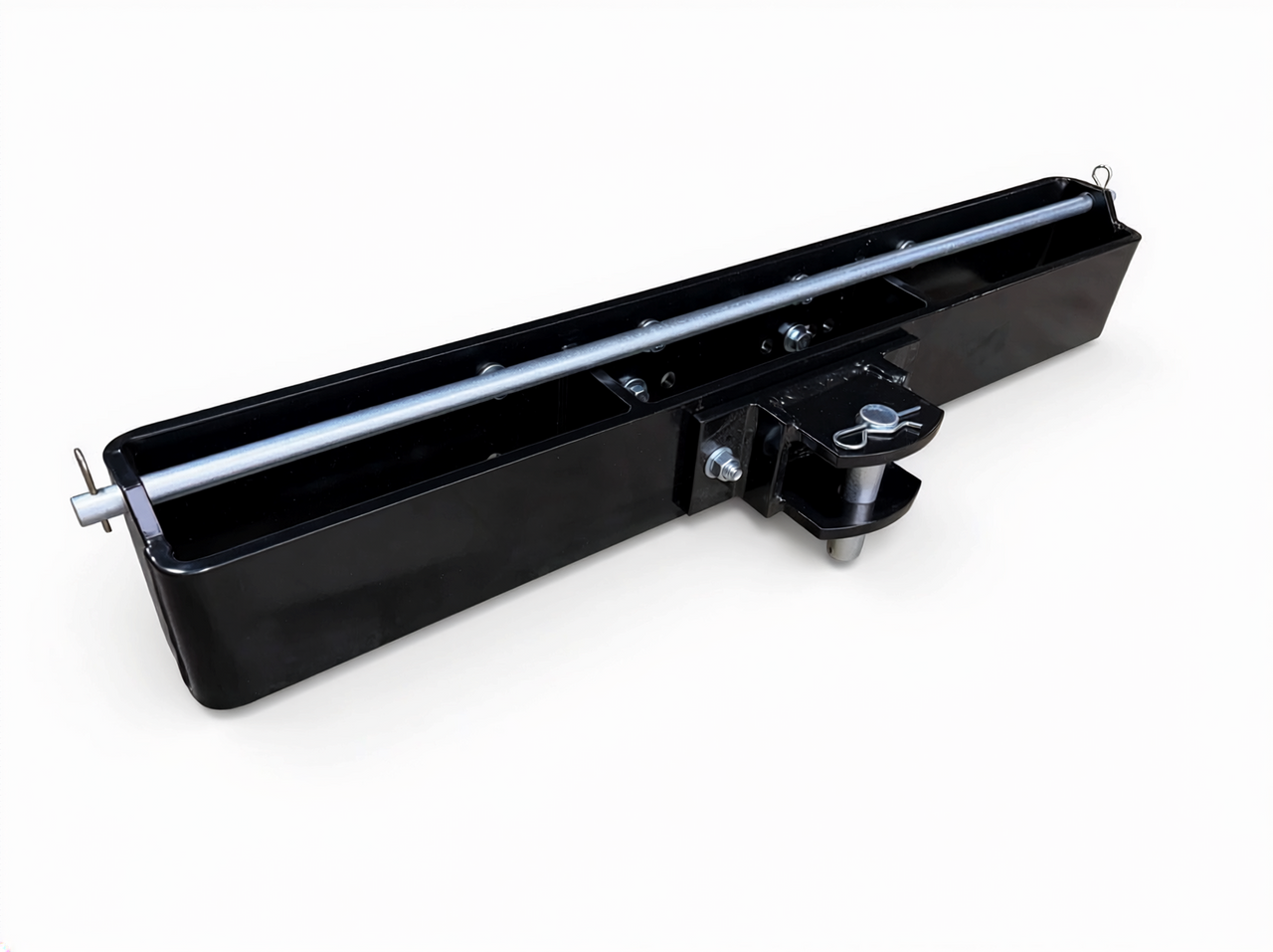

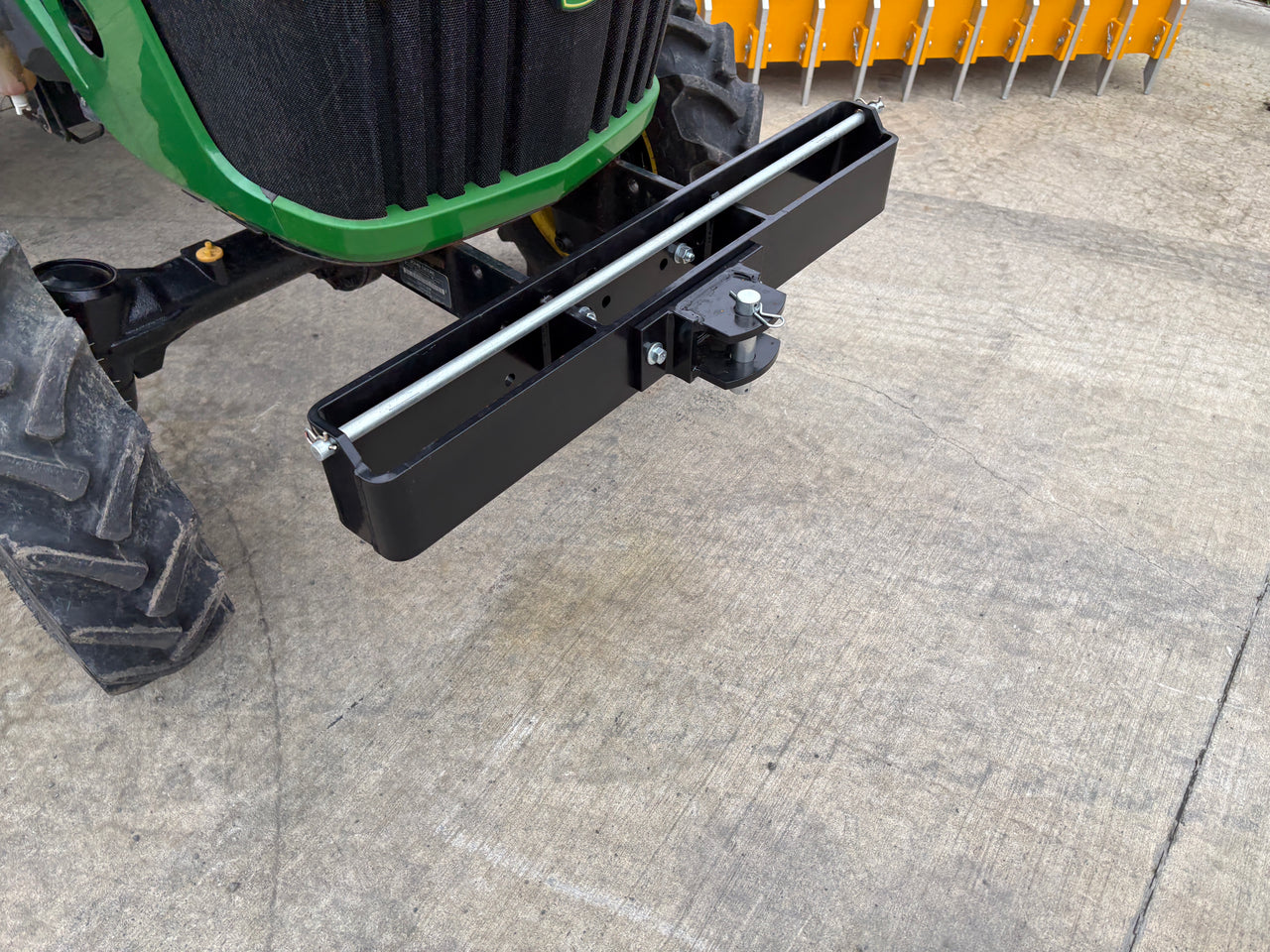

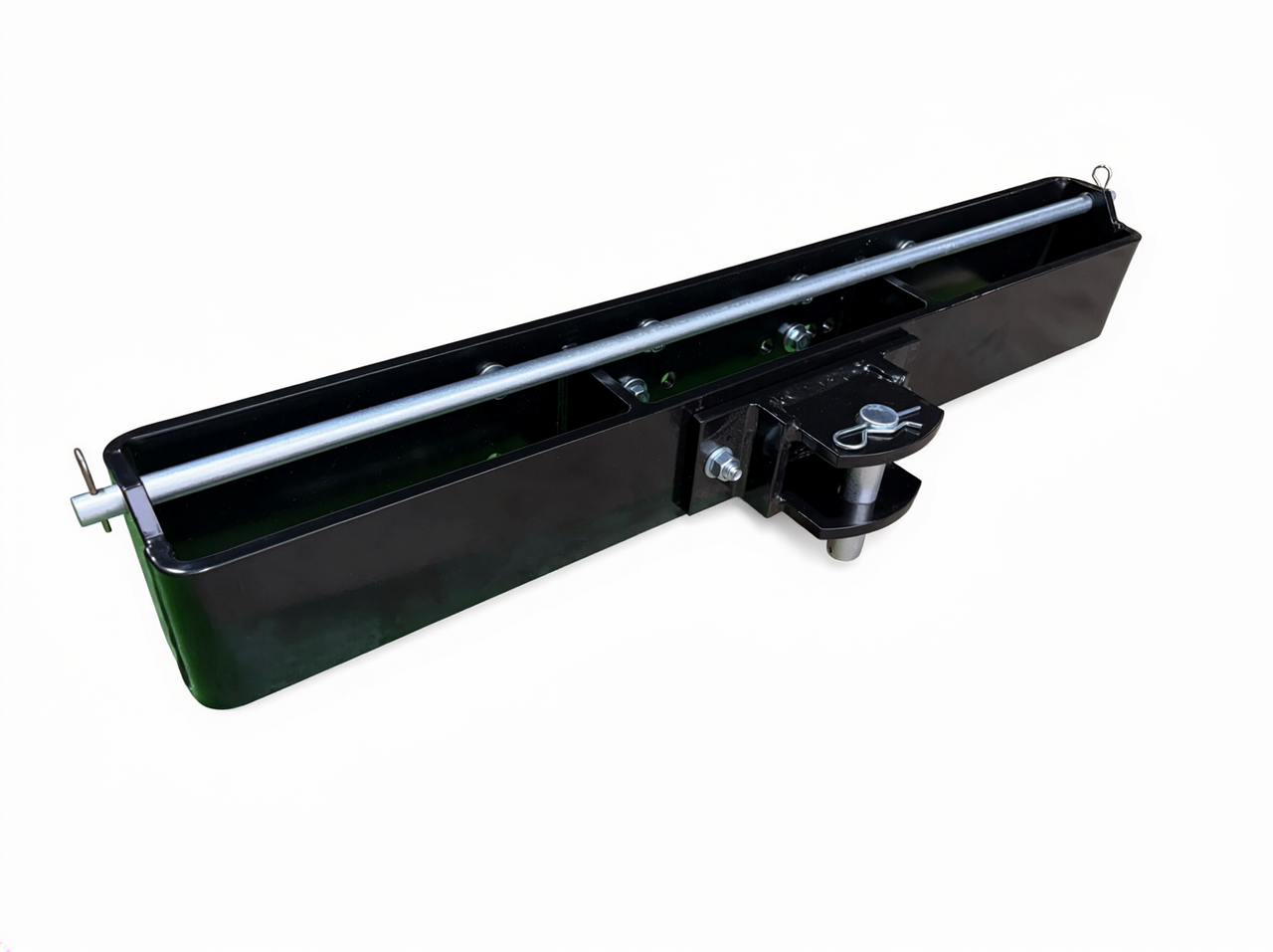

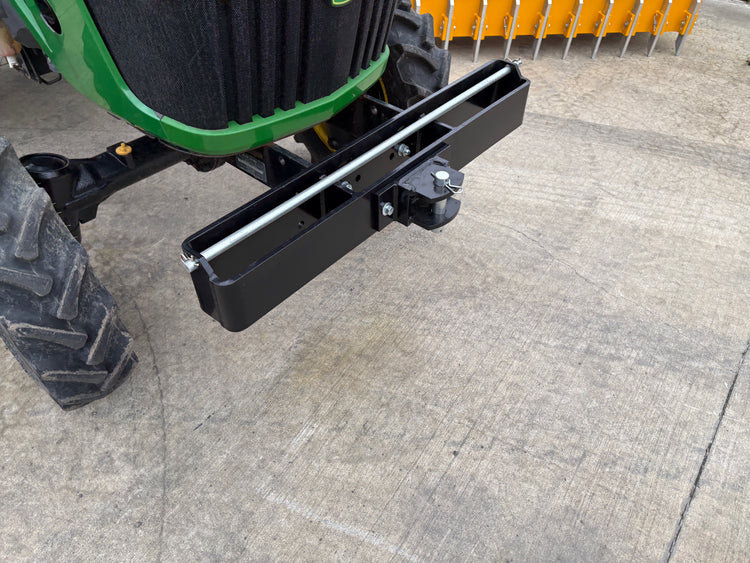

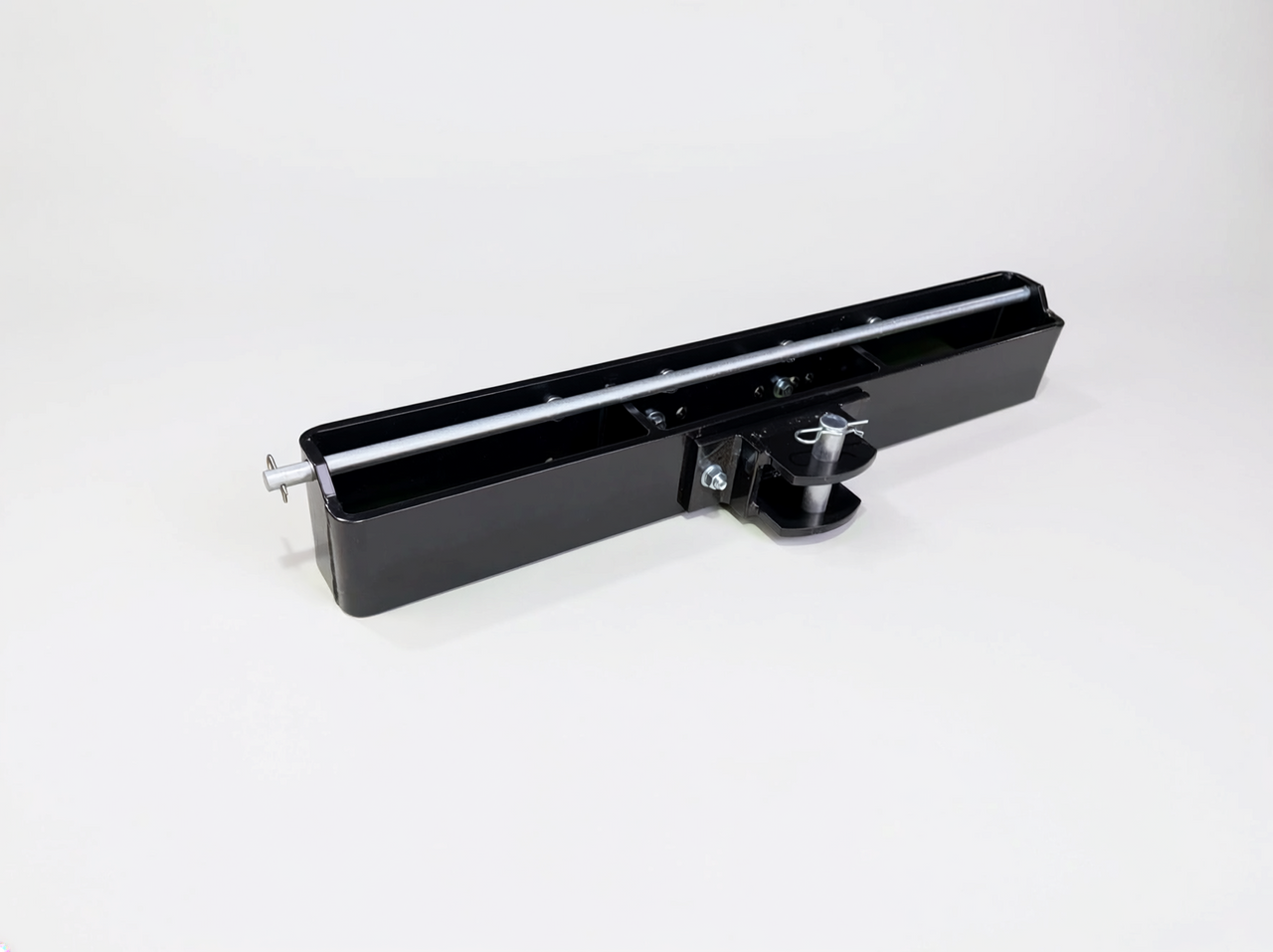

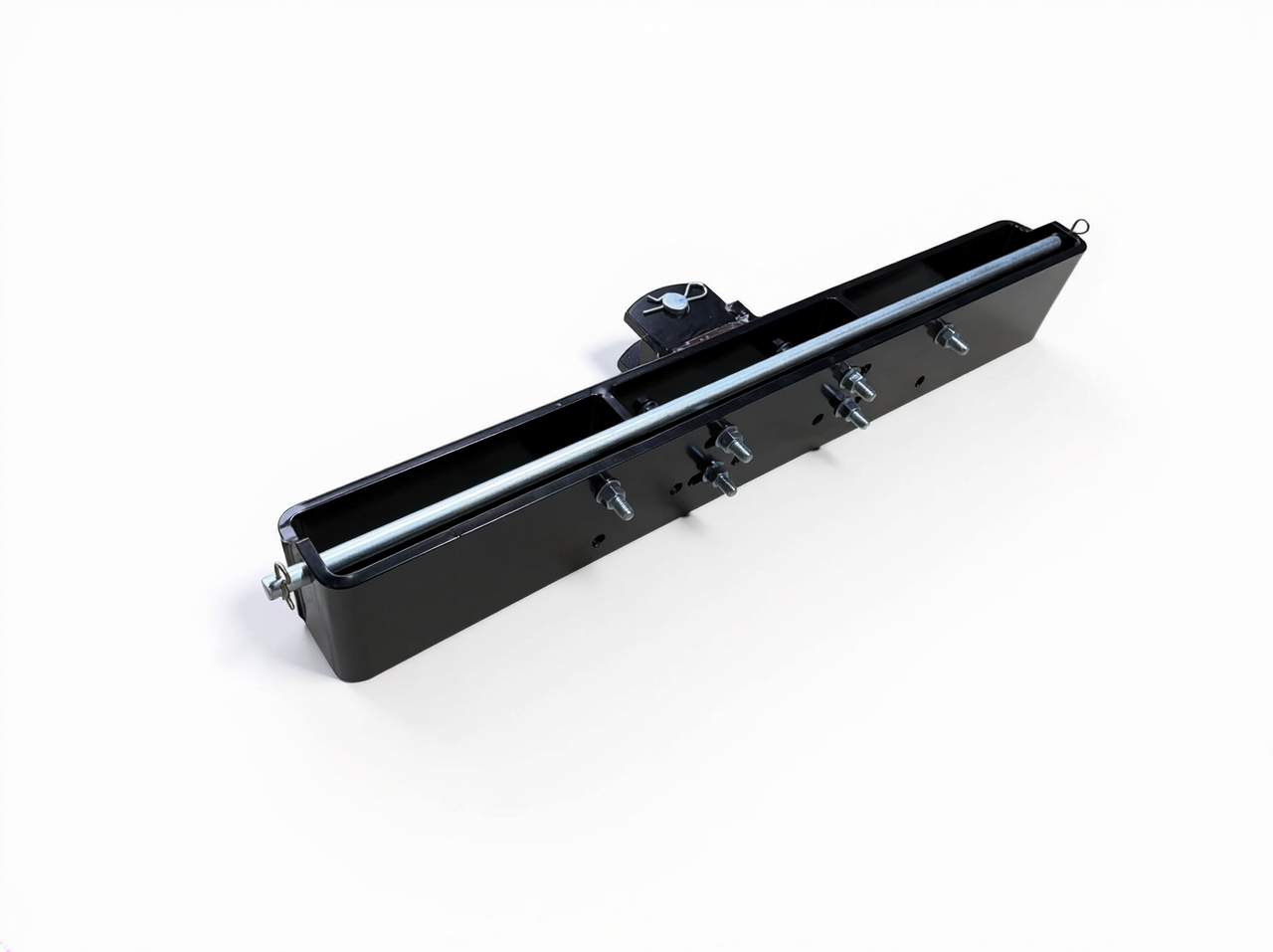

Sierra front weight bracket designed to carry Sierra suitcase weights on the front of your tractor. 850mm wide frame with a capacity of up to 12 suitcase weights without the tow clevis fitted, or up to 8 weights with the tow clevis in place. Bracket weighs 23kg. SKU: SWB1.

Features & Benefits

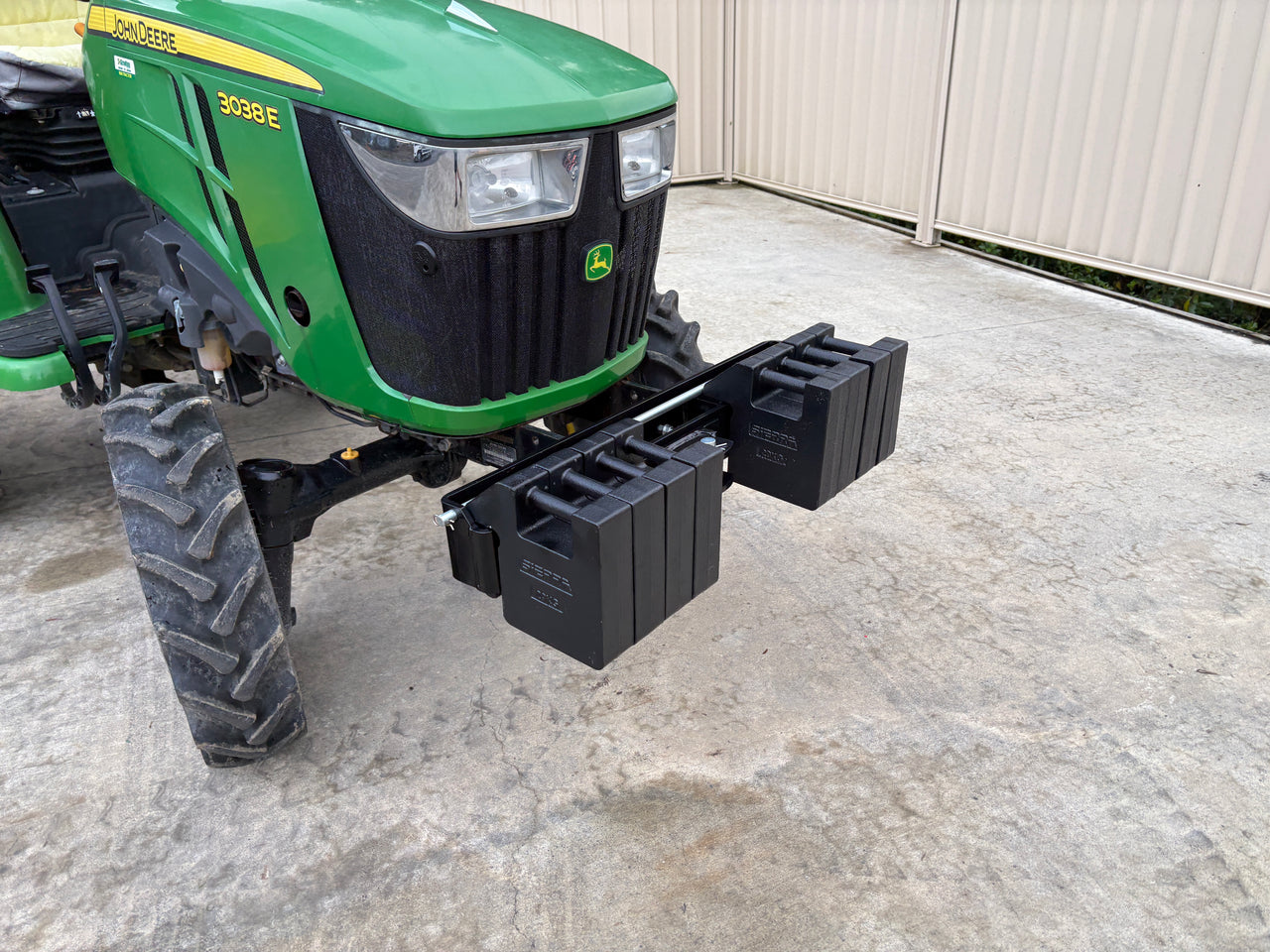

  • Holds up to 12 Sierra suitcase weights without tow clevis
  • Holds up to 8 Sierra suitcase weights with tow clevis fitted
  • 850mm wide frame — suits a wide range of tractor front ends
  • 23kg bracket weight
  • Improves front axle traction and stability when running heavy rear implements
  • Tow clevis compatible — retain front towing capability while carrying weights

Specifications

Specification Value
SKU SWB1
Bracket Width 850mm
Bracket Weight 23kg
Max Weights (without tow clevis) 12 suitcase weights
Max Weights (with tow clevis) 8 suitcase weights
Compatible Weights Sierra suitcase weights

Mounting Dimensions

Dimension Value
Mounting hole diameter Ø14mm
Outer hole centres (horizontal) 165mm
Inner slot centres (horizontal) 100mm
Mounting row spacing (vertical) 50mm
Top row to centre bar (vertical) 30mm
Outer hole row spacing (vertical) 45mm
Weight carrier slot span (total) 240mm
Weight carrier slot centres 160mm
Weight carrier slot width 34mm
Weight carrier slot height 14mm

Best For

  • Tractors running heavy rear-mounted implements (post-hole borers, slashers, tillers)
  • Improving front axle traction on slopes and soft ground
  • Operators who need front ballast without sacrificing front towing capability

Compatibility

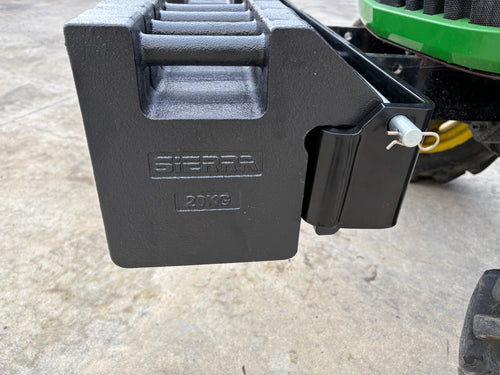

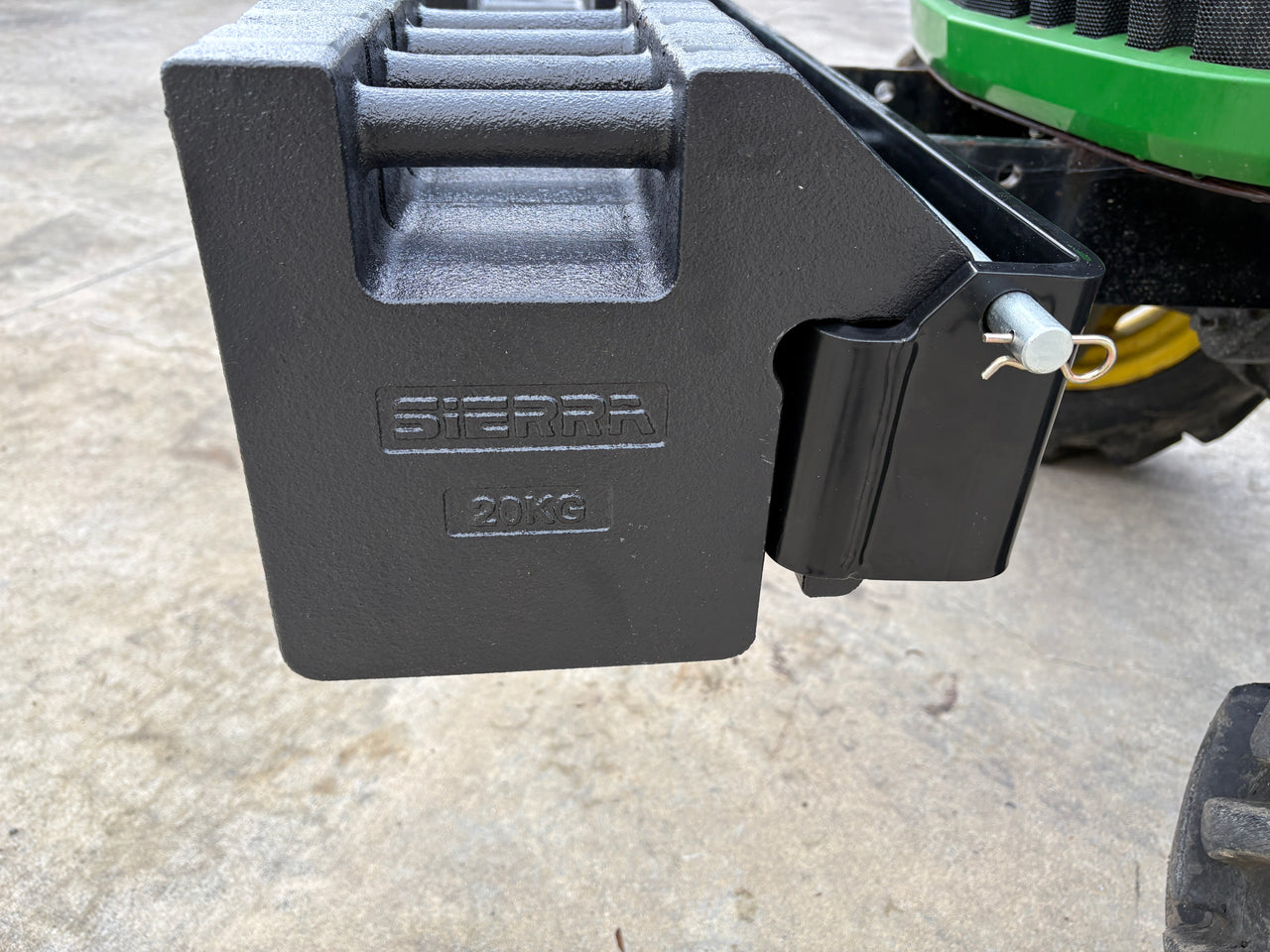

  • Designed for use with Sierra suitcase weights
  • 850mm wide — confirm fitment against your tractor’s front weight carrier mounting points before ordering
  • Mounting holes: Ø14mm, 165mm outer centres, 50mm row spacing

What’s Included

  • 1 × Sierra front weight bracket (SWB1)
  • M12 Mounting Bolts as pictured
  • Pin for clevis hitch with 1 R Clip
  • Pin for weight retention and 2 R Clips

Warranty & Support

12-month warranty. Contact Implements Direct for product advice and support.

Shipping & Freight

Shipped via Mainfreight. Freight costs calculated at checkout. 23kg shipping weight.
